Mångsidiga svets runda muttrar
  • Mångsidiga svets runda muttrarMångsidiga svets runda muttrar
  • Mångsidiga svets runda muttrarMångsidiga svets runda muttrar
  • Mångsidiga svets runda muttrarMångsidiga svets runda muttrar
  • Mångsidiga svets runda muttrarMångsidiga svets runda muttrar
  • Mångsidiga svets runda muttrarMångsidiga svets runda muttrar

Mångsidiga svets runda muttrar

Kunder över hela världen, tillsammans med tillverkare inom branscher, litar på Xiaoguo® för pålitliga och hållbara fästelösningar. Installationen av mångsidiga svetsrundnötter är mycket effektiv, vilket möjliggör produktion med hög volym med hjälp av projektionssvetsutrustning.
Modell:QC/T 867-2011

Skicka förfrågan

Produktbeskrivning

Versatile Weld round nuts are everywhere in car making and heavy transport. They’re used to hold on body panels, frame parts, brackets, and trim. Being able to make a strong, fixed threaded spot on thin sheet metal is really useful for keeping assembly lines moving efficiently.

In a vibrating environment, objects remain stable and prevent loosening. This feature provides reliable protection for key vehicle components—whether engine mounts or suspension components—as long as the vehicle is in normal use, they can remain tightened, fundamentally reducing safety hazards and failure risks caused by loose components.

Product details

Versatile Weld round nuts get used a lot in making commercial and industrial furniture, shelves, and storage systems. They let you put together metal racks, lockers, and workbenches really solidly and cleanly—no need for loose nuts and bolts on the back. That keeps things looking neat and helps save space.

Thanks to its high-strength bonding characteristics, welded connections can provide reliable rigid support and stability for the structure. Even when bearing huge loads or weights, they can effectively resist deformation, displacement and other problems, ensuring that the overall structure always maintains a stable mechanical state.

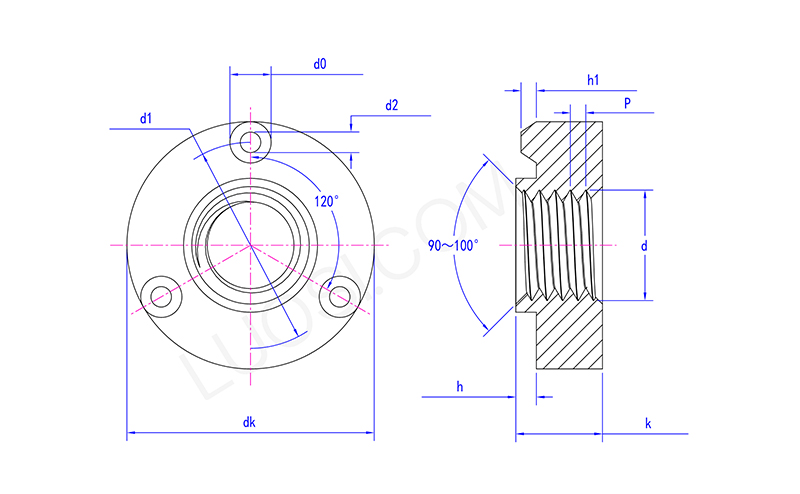

Versatile Weld Round Nuts

Mon M4 M5 M6 M8 M10 M12
P 0.7 0.8 1 1.25 1.5 1.75
d1 max 10.9 11.9 13.3 17.9 19.9 22.7
d1 min 10.5 11.5 12.9 17.5 19.5 22.3
d0 max 2.8 2.8 3.2 4.3 4.3 5
d0 min 2.5 2.5 2.9 4 4 4.7
d2 max 0.95 0.95 1.5 2.1 2.1 2.5
d2 min 0.65 0.65 1.2 1.8 1.8 2.2
dk max 13.7 14.7 16.5 22.2 24.2 27.7
dk min 13.3 14.3 16.1 21.8 23.8 27.3
h max 1.35 1.35 1.55 2 2 2.5
h min 1.1 1.1 1.3 1.75 1.75 2.25
h1 max
0.85 0.85 1 1.5 1.5 2
h1 min
0.65 0.65 0.75 1.19 1.19 1.78
k max 4.45 4.7 5.2 6.8 8.4 10.8
k min 4.15 4.4 4.9 6.44 8.04 10.37

Packaging

For big orders, we pack our Versatile Weld round nuts securely. We use strong, sealed cardboard boxes or heavy-duty plastic bags to keep them from rusting. Then we stack them on pallets for safe shipping by sea. That way, they show up clean, neat, and not damaged during delivery.
